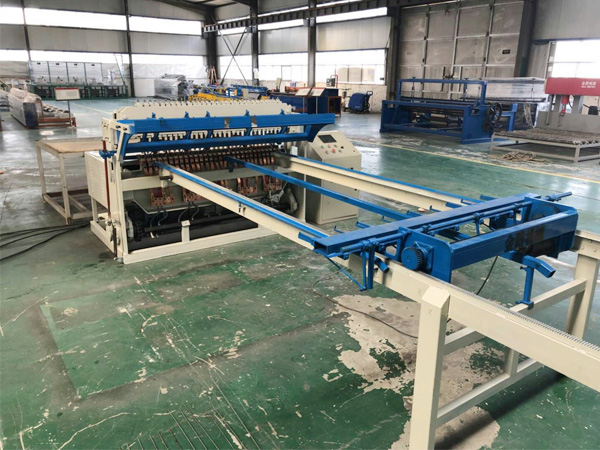

Fully automated welded wire machine
Jinlu welded mesh panel machine (Automatic Welding Panel Machine), is the mechanical integration of the most advanced electronic and computer network welding equipment, the machine of the biggest advantages is the wire diameter adjustable weft pitch into the computer will be able to achieve what you get the pitch, mesh random variable. The mesh welding machine flat, diagonal error is very small, the welding network expert assessment is the most advanced welding equipment. If you need more than 3.0m greater than the diameter 8MM devices and equipment can be pre-orders.
一、Details of the machine:
Equipment include : PLC electric cabinet , welding machine ,pulling mesh part ,moving mesh platform
Auxiliary equipment: wire straightening machine
二、Basic technical parameters:
1, the machine mesh width of 2.5M . ( other width can custom-made ,max width 3m .)
2, welding diameter 2.5MM--6MM
3, the machine mesh Maximum length: 6m
4, the speed:55-60times/ min
4.5, mesh size :50-300mm (Parameters according to buyer’s demand .)
7, Welding Material requirements: Q195F such as carbon content lower than the phase wires on the standard annealing
8, This machine is widely used in railway fence, highway fence, bridge high-rise buildings, etc. mesh welding.
